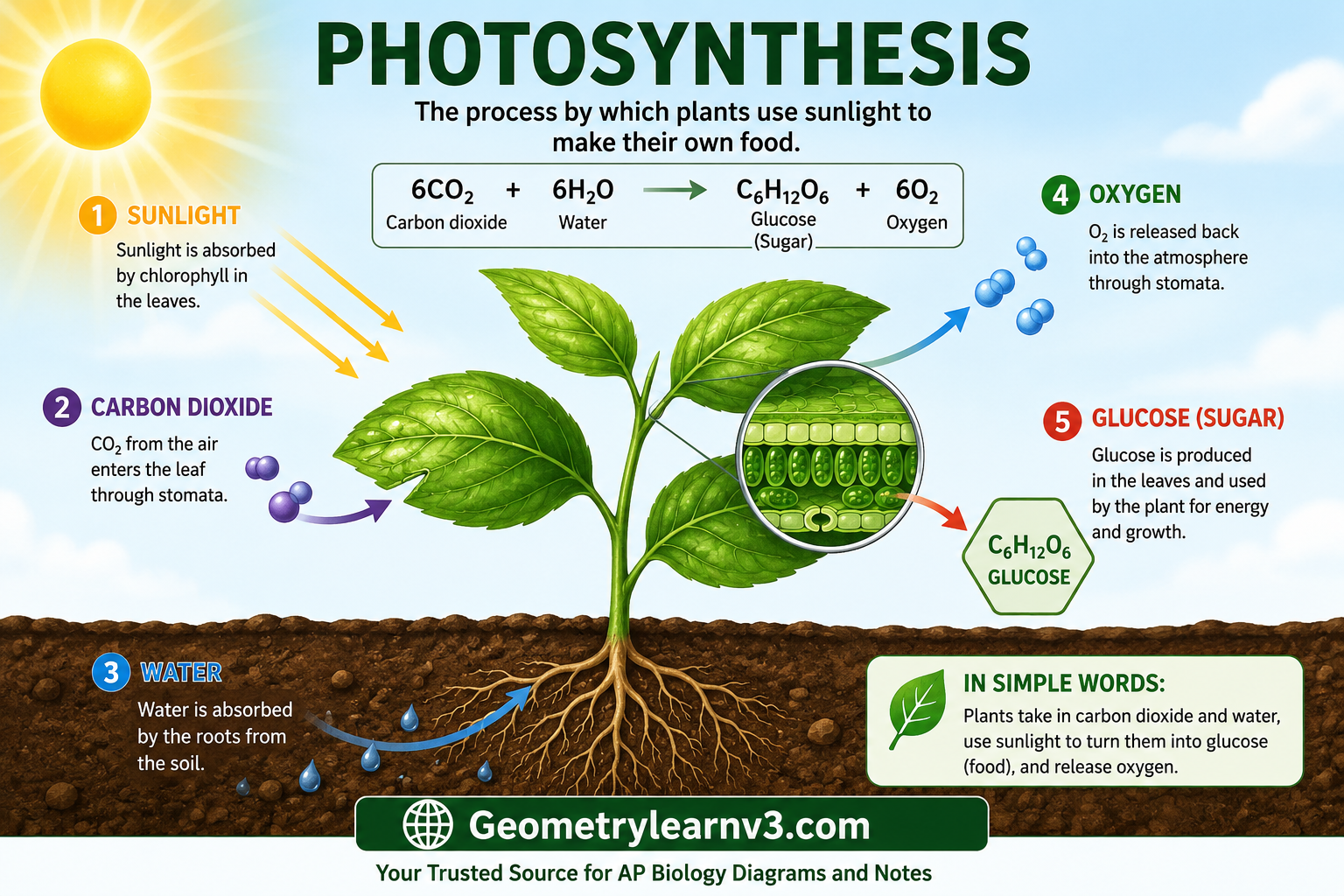

A photosynthesis diagram AP Bio is one of the most important visual tools used in AP Biology to understand how plants convert light energy into chemical energy. It simplifies a complex biological process by showing how sunlight, water, and carbon dioxide are transformed into glucose and oxygen. Students often rely on this diagram to connect theoretical knowledge with a clear visual structure of the process inside plant cells.
Understanding a photosynthesis diagram AP Bio is essential for exam success because it breaks down the entire process into two major stages. Instead of memorising long explanations, learners can observe how energy flows through chloroplast structures. This makes it easier to understand how light dependent reactions and the Calvin cycle work together in a continuous system that supports plant growth and life on Earth.
What Is Photosynthesis in AP Biology
Photosynthesis in AP Biology is the process by which plants, algae, and some bacteria convert light energy into chemical energy stored in glucose. A photosynthesis diagram AP Bio helps students visualise this transformation clearly by showing inputs such as carbon dioxide and water, and outputs like glucose and oxygen. This biological process is fundamental for sustaining life and maintaining the Earth’s oxygen supply.
A photosynthesis diagram AP Bio also demonstrates that photosynthesis is not a single reaction but a series of coordinated steps. These steps include capturing light energy, converting it into chemical energy, and using that energy to build carbohydrates. Understanding this diagram allows students to see how energy moves through different molecules and how plants function as natural energy converters in ecosystems.
Structure of the Chloroplast in Photosynthesis Diagram AP Bio
The chloroplast is the central organelle responsible for photosynthesis, and it is clearly represented in a photosynthesis diagram AP Bio. It contains structures such as thylakoids, grana, and stroma, each playing a specific role in the process. The thylakoid membranes are where light energy is captured, while the stroma is the site where carbon fixation occurs.
A photosynthesis diagram AP Bio helps students understand how the chloroplast is organised to maximise efficiency. The arrangement of thylakoids in stacks called grana increases the surface area for light absorption. Meanwhile, the stroma contains enzymes needed for the Calvin cycle. This structural organisation ensures that both stages of photosynthesis occur smoothly and efficiently within the same organelle.
Light Dependent Reactions in Photosynthesis Diagram AP Bio
Light dependent reactions are the first stage shown in a photosynthesis diagram AP Bio and take place in the thylakoid membranes of the chloroplast. During this stage, chlorophyll absorbs sunlight, which excites electrons and starts an energy transfer process. This energy is used to produce ATP and NADPH, which are essential molecules for the next stage of photosynthesis.
A photosynthesis diagram AP Bio also illustrates the process of photolysis, where water molecules are split to release oxygen, protons, and electrons. The oxygen is released into the atmosphere as a by-product. The electrons replace those lost by chlorophyll, ensuring the continuation of the process. This stage is crucial because it converts light energy into chemical energy stored in ATP and NADPH.
Calvin Cycle in Photosynthesis Diagram AP Bio
The Calvin cycle is the second stage represented in a photosynthesis diagram AP Bio and occurs in the stroma of the chloroplast. Unlike the light dependent reactions, this stage does not require direct sunlight. Instead, it uses ATP and NADPH produced earlier to convert carbon dioxide into glucose through a series of enzyme-controlled reactions.
A photosynthesis diagram AP Bio shows three main phases of the Calvin cycle: carbon fixation, reduction, and regeneration of RuBP. The enzyme RuBisCO plays a key role in capturing carbon dioxide molecules. Over time, these reactions produce G3P molecules, which are eventually used to form glucose. This stage is essential for storing energy in a usable chemical form for the plant.
How to Read a Photosynthesis Diagram AP Bio
Reading a photosynthesis diagram AP Bio correctly is essential for understanding how energy flows within a plant cell. These diagrams typically use arrows to show the movement of electrons, molecules, and energy between the light dependent reactions and the Calvin cycle. Students must follow these arrows carefully to understand the full process.
A photosynthesis diagram AP Bio also includes labelled inputs and outputs such as sunlight, water, carbon dioxide, oxygen, ATP, and NADPH. By studying these labels, learners can understand how each component contributes to the process. This step-by-step visual approach helps simplify complex biological interactions and improves long-term understanding of photosynthesis.
Inputs and Outputs of Photosynthesis
The inputs shown in a photosynthesis diagram AP Bio include sunlight, water, and carbon dioxide. Sunlight provides the energy required to initiate the process, water supplies electrons for the light reactions, and carbon dioxide serves as the raw material for glucose production. These components work together to support the entire photosynthetic process.
The outputs of a photosynthesis diagram AP Bio are oxygen and glucose. Oxygen is released into the atmosphere as a by-product of water splitting, while glucose is stored as energy for the plant. This balance of inputs and outputs demonstrates how plants act as natural energy converters, supporting both their own survival and the wider ecosystem.
Common Mistakes Students Make in Photosynthesis Diagram AP Bio
Many students find it challenging to interpret a photosynthesis diagram AP Bio because they confuse the two main stages of the process. Light dependent reactions and the Calvin cycle are often mixed up, especially when identifying where each process takes place. This confusion can lead to incorrect answers in exams.
Another common mistake in a photosynthesis diagram AP Bio is misidentifying key molecules such as ATP and NADPH. Students may also forget that oxygen is produced during the light dependent reactions, not the Calvin cycle. Regular practice with labelled diagrams helps reduce these errors and strengthens overall understanding of the topic.

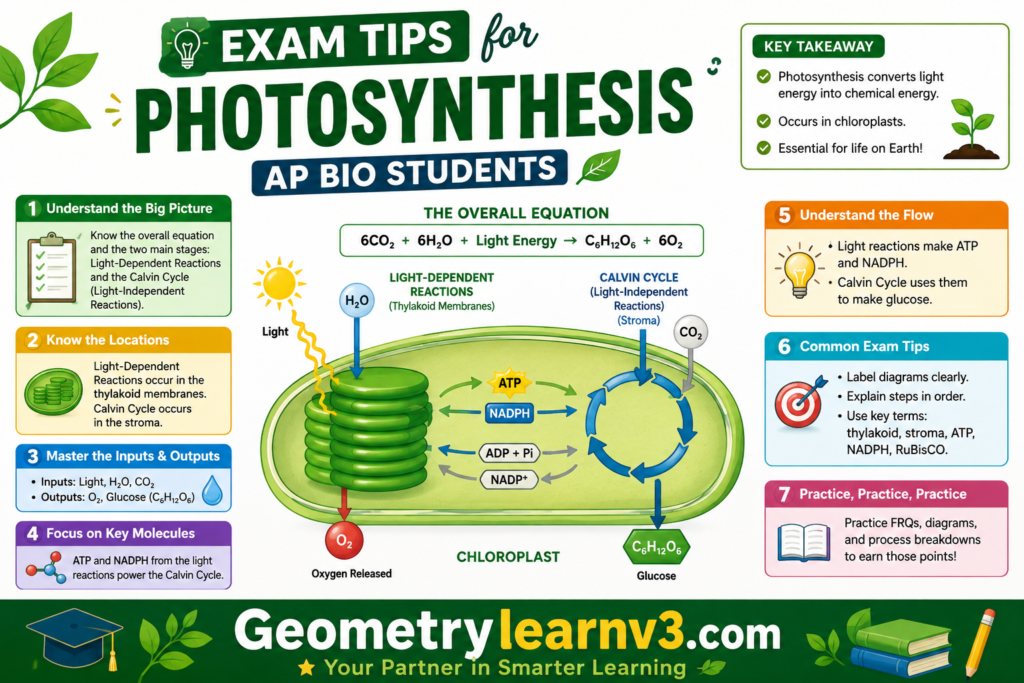

Exam Tips for Photosynthesis Diagram AP Bio Students
When preparing for exams, studying a photosynthesis diagram AP Bio can greatly improve understanding and memory retention. Visual learning helps students recall complex processes more easily during assessments. Practising diagrams regularly ensures familiarity with the structure and flow of photosynthesis.
A photosynthesis diagram AP Bio often appears in both multiple-choice and written questions. Students should focus on explaining each stage clearly using correct scientific terminology. Key terms such as chloroplast, ATP, NADPH, carbon fixation, and electron transport chain should be used accurately to achieve higher marks in AP Biology exams.
Real-Life Importance of Photosynthesis
A photosynthesis diagram AP Bio is not only important for exams but also helps explain real-life biological processes. Photosynthesis is responsible for producing oxygen, which is essential for the survival of most living organisms. It also forms the base of the food chain by producing glucose, which provides energy for plants and animals.
Understanding a photosynthesis diagram AP Bio helps learners appreciate how ecosystems function. Plants act as primary producers, converting solar energy into chemical energy that supports all life forms. Without photosynthesis, life on Earth would not be sustainable, making this process one of the most important in biology.
Conclusion
A photosynthesis diagram AP Bio is a powerful learning tool that simplifies one of the most important biological processes. It clearly shows how light dependent reactions and the Calvin cycle work together within the chloroplast to produce energy-rich glucose. This visual representation makes complex ideas easier to understand and remember.
By mastering a photosynthesis diagram AP Bio, students gain a strong foundation in AP Biology and improve their exam performance. It also builds a deeper understanding of how plants sustain life on Earth through energy conversion. Learning this diagram thoroughly is essential for both academic success and scientific knowledge.
FAQs
What is a photosynthesis diagram AP Bio?
A photosynthesis diagram AP Bio is a labelled visual representation showing how plants convert light energy into chemical energy through chloroplast processes.
What are the two main stages in photosynthesis?
The two main stages are light dependent reactions and the Calvin cycle, both clearly shown in a photosynthesis diagram AP Bio.
Where do light dependent reactions occur?
They take place in the thylakoid membranes of the chloroplast, as shown in most photosynthesis diagram AP Bio illustrations.
What is the role of the Calvin cycle?
The Calvin cycle converts carbon dioxide into glucose using ATP and NADPH produced during the light reactions.
Why is chloroplast important in photosynthesis?
Chloroplast is the organelle where all stages of photosynthesis occur, making it a key part of every photosynthesis diagram AP Bio.
What are the main inputs of photosynthesis?
The main inputs are sunlight, water, and carbon dioxide, all shown clearly in a photosynthesis diagram AP Bio.
What are the outputs of photosynthesis?
The outputs are glucose and oxygen, which are essential for energy storage and survival of living organisms.
